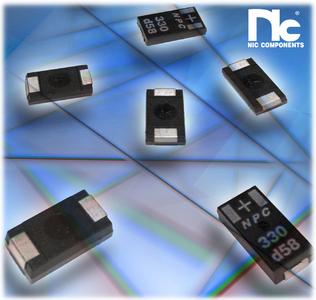

Texim Europe provides the NPCseries from NIC Components, a new range of flat chip surface mount low ESR solid aluminum electrolytic capacitors. The NPC series provides a highly competitive, space saving, highperformance capacitor solution, for use in a wide range of distributed power management applications; including DC-DC power supplies, POL, LDO, VRM regulators in high currentlow voltage power module applications. The NPC series features low impedance and low ESR (0.007 ohm) at high frequencies, plus high ripple current ratings (3.5Arms) at 105ºC. Parts are available in capacitance values from 15?F and 470?F and working voltages of 2VDC to 8VDC. NPC overall case dimensions are a compact 7.3mm x 4.3mm, with case heights ranging between 1.4mm to 2.9mm and fit EIA (7343) 'D' land patterns.
The NPC series is fully RoHS compliant, including Snwhisker free gold flash terminals and is compatible with Pbfree (SAC) reflow soldering processes. A wide operating temperature range of -55ºC to +105ºC makes the NPC series suitable for a broad range of applications. Components are supplied taped and reeled packaged for automated assembly processes.
Order your Free NIC Quickkit at: http://www.niccomp.com/...
More info on: http://www.texim-europe.com/...
