Proven concept with a new processor generation
With the ONE N100, spo-comm expands its entry-level portfolio with a compact industrial PC that combines modern performance with high energy efficiency. The Intel® N100 processor of the current Alder Lake-N generation features four cores and clock speeds of up to 3.4 GHz, delivering noticeable performance improvements over the Intel® Celeron® J6412 used in the previous model while maintaining low power consumption.
Thanks to its passively cooled metal chassis, the ONE N100 operates completely silently and maintenance-free. This makes the system ideal for continuous 24/7 operation in industrial environments, machine control systems, or digital signage installations.
Compact, versatile, and industrial ready

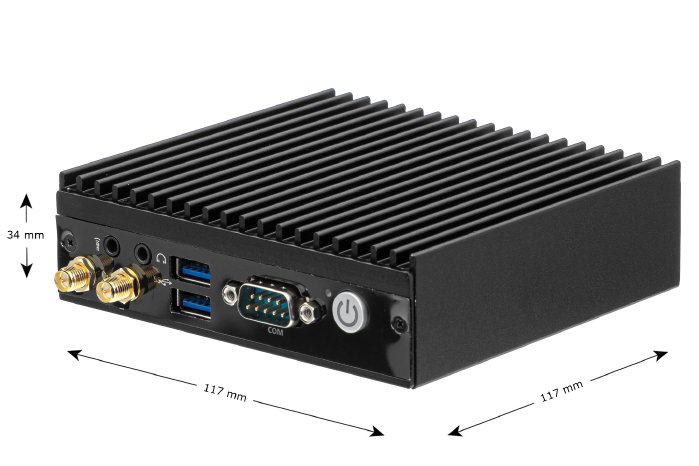

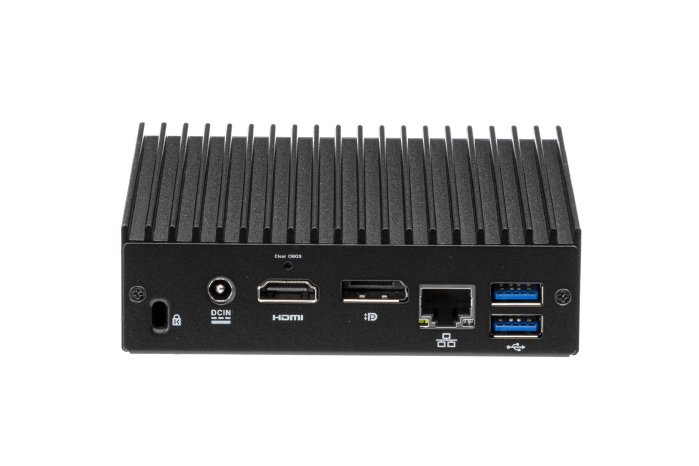

Despite its compact dimensions of just 116 x 107 x 35 mm, the Mini-PC provides all essential interfaces required for industrial applications. These include four USB 3.2 ports, a freely configurable COM port (RS232/422/485), Gigabit LAN, as well as HDMI 2.0 and DisplayPort 1.4 for connecting displays. Integrated Wi-Fi also enables convenient wireless connectivity.
Equipped with 8 GB DDR4 memory and a 128 GB eMMC SSD, the ONE N100 reliably handles typical tasks in industrial control, automation, robotics, and digital signage applications. Various Windows and Linux operating systems are available as optional pre-installed solutions.
The ONE N100 is available immediately and can be configured and ordered via www.spo-comm.de.
Highlights and technical specifications at a glance:
With the ONE N100, spo-comm expands its entry-level portfolio with a compact industrial PC that combines modern performance with high energy efficiency. The Intel® N100 processor of the current Alder Lake-N generation features four cores and clock speeds of up to 3.4 GHz, delivering noticeable performance improvements over the Intel® Celeron® J6412 used in the previous model while maintaining low power consumption.
Thanks to its passively cooled metal chassis, the ONE N100 operates completely silently and maintenance-free. This makes the system ideal for continuous 24/7 operation in industrial environments, machine control systems, or digital signage installations.
Compact, versatile, and industrial ready
Despite its compact dimensions of just 116 x 107 x 35 mm, the Mini-PC provides all essential interfaces required for industrial applications. These include four USB 3.2 ports, a freely configurable COM port (RS232/422/485), Gigabit LAN, as well as HDMI 2.0 and DisplayPort 1.4 for connecting displays. Integrated Wi-Fi also enables convenient wireless connectivity.
Equipped with 8 GB DDR4 memory and a 128 GB eMMC SSD, the ONE N100 reliably handles typical tasks in industrial control, automation, robotics, and digital signage applications. Various Windows and Linux operating systems are available as optional pre-installed solutions.
The ONE N100 is available immediately and can be configured and ordered via www.spo-comm.de.
Highlights and technical specifications at a glance:
- CPU: Intel® N100 (4 cores, up to 3.4 GHz)
- GPU: Integrated Intel® UHD Graphics
- RAM: 8 GB DDR4 SO-DIMM
- Storage: 128 GB eMMC SSD
- Display Outputs:
- 1× HDMI 2.0
- 1× DisplayPort 1.4
- Network:
- Integrated Wi-Fi
- 1× Gigabit LAN
- Interfaces:
- 4× USB 3.2
- 1× COM (RS232/422/485)
- Audio In/Out
- Cooling: Passive, fanless
- Power Supply: 12V / 2A / 24W
- Environmental Conditions: 0°C to +40°C
- Application Areas: Industrial Automation, Machine Control, Robotics, Digital Signage, Industrial Control
- Operating Systems: Windows 10/11, Windows IoT, Linux
