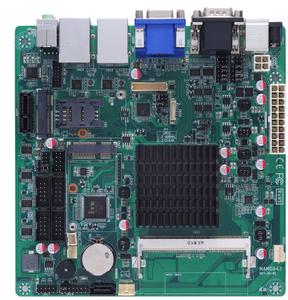

Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, has launched its new industrial Mini-ITX motherboard, MANO842, featuring quad-core SoC, fanless design, advanced graphics performance, and 12VDC/STD ATX power input. The powerful MANO842 is equipped with a quad-core Intel® Celeron® J1900 processor with Intel® HD Graphics engine, delivering outstanding computing, graphics and media performance at a competitive price. The cost-effective industrial-grade motherboard utilizes high bandwidth DDR3L-1333 SO-DIMM with system memory up to 8 GB and a rich set of I/O features. With 12V single voltage DC power or STD ATX jack, the ultra-compact Mini-ITX mainboard can be widely applied to automation and embedded industries, including medical healthcare, in-vehicle infotainment, kiosk, digital entertainment, digital signage, POS and much more.
Advanced Features:
- Intel® quad-core Celeron® J1900 SoC (Intel® Bay Trail-D 2.0 GHz) processor
- One 204-pin SO-DIMM dual channel DDR3L-1333MHz max. up to 8 GB
- 1 PCIe x1 supported
- 1 PCI Express mini card supported
- 5 USB 2.0 ports and 1 USB 3.0 port supported
- 1 SATA-300 and 1 mSATA supported
- 6 COM ports supported (COM1 and COM2 support RS-232/422/485)
- ATX 12V or 12V DC Jack supported
- Dual-view display via VGA, HDMI and 18/24-bit dual-channel LVDS
