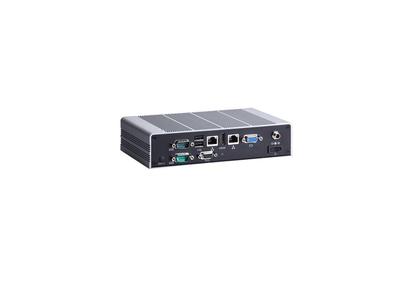

Axiomtek Introduces Intel® Celeron® Quad Core SoC-based Embedded System with 10-34VDC Wide Range Power Input – eBOX626-842-FL

(PresseBox) (Langenfeld, ) Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, has launched eBOX626-842-FL, the energy-efficient fanless embedded box system suited for rugged and extreme applications with its extended temperature and wide range voltage capability. The extreme compact eBOX626-842-FL utilizes an onboard Intel® Celeron® quad core processor J1900 2.0GHz (codename: Bay Trail-D) to boast both excellent performance and ultra-low power consumption. The ultra-slim fanless embedded computer supports system memory up to 8 GB with one DDR3L-1066/1333 SO-DIMM socket and offers HDMI and VGA display outputs, offering not only high computing capability but also excellent graphics performance. Integrated single-chip design, the brand new ruggedized embedded system is lighter and thinner compared to previous eBOX620 series. Supporting wide operating temperature between -20°C to +55°C and 10~34VDC wide DC input voltage, the fanless embedded PC is excellence for wide range of industrial applications. Its passive cooling design also offers quiet, fanless operation with low power consumption, and all at an attractive price point.

Advanced Features:

- Fanless, IP40 rated operation design with full-featured I/O
- Intel® Celeron® J1900 2.0GHz quad-core SoC onboard (Bay Trail)
- High performance 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8 GB
- 2 RS-232/422/485, 1 RS-232 and 4 USB ports
- One 2.5” SATA drive bay and mSATA supported
- 2 PCI Express Mini Card slots and 1 SIM slot
- Supports VGA and HDMI dual display
- Wide operating temperature -20°C - +55°C
- Wide range DC input 10-34VDC

For further product information: eBOX626-842-FL
