High-quality feeders and extruders from Three-Tec at ACHEMA

Mini-Extruder Hybrid mit 9mm Flachboden-Dosiergerät
(PresseBox) ( Seon, )
Three-Tec will be attending the Leading Show for the Process Industries ACHEMA from 11 to 15 June 2018. In hall 6.0 at booth B51 you will have the opportunity to learn more about our attractive products in the area of process engineering and powder handling.

Three-Tec introduces the following novelties in addition to its innovative and high-quality feeders, extruders and peripherals:

Micro-feeder ZD 5 FB i6000 with integrated load cells

The new gravimetric micro-feeding system with integrated load cells and the Siemens weighing electronics, installed in a small, seperate control box, is suitable for high-precision and continuous micro-feeding in the range of 0.003 - 0.8 dm3/h.

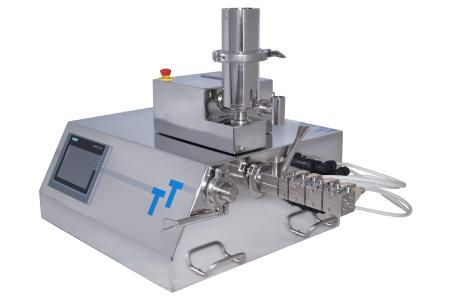

Hybrid laboratory extruder

Thanks to a void volume of only 1.2 cm3 with 5mm screw diameter, the parallel twin-screw Mini-Extruder Hybrid has a very low active ingredients consumption. It is therefore ideally suited for extrusion options in resource-saving miniature scale. Thanks to the universal use of heating and cooling parts, nozzle plates, pressure and temperature sensors, the device offers the flexibility to convert from 5 or 9mm to 9 or 12mm screw diameter in just a few minutes. The range of application is thereby significantly increased compared to conventional extruders.

Production line in high-containment box with 18mm twin screw extruder

The high-containment box with integrated feeding system, 18mm twin screw extruder, conveyor belt and granulator ensures that the process from mixing the powders to the finished granules takes place in a protected and controlled environment. This eliminates the need to set up a complete clean room because the drive technology and the scale are in the non-contaminated area and the lead-through is sealed.

Three-Tec also offers machines according to GMP, FDA, and / or ATEX standards upon request.

Visit us at ACHEMA in Frankfurt am Main in Hall 6.0, Booth B51
