Switching DC Currents safely in Enclosures
STEGO Switch Module DCM 010:
The DCM 010 switch module offers users a wide range of DC applications in enclosures. Designed for versatility, the DCM 010 switches high capacities effortlessly, as is the case with demanding current consumers such as heaters. In this case currents up to DC 11 A to DC 15 A are safely switched. The permissible operating voltage covers a large range with DC 20 V to DC 56 V.

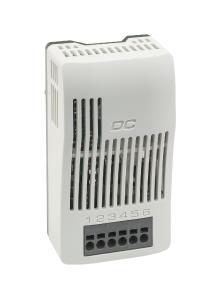

The newly designed housing for the DC Line, with integrated DC lettering, unites design and ergonomics alike. A clamp bridge with six plug-in terminals for simple cable connection is located in the lower part of the housing. Stranded conductors from 1.5 mm2 to 2.5 mm2 can be easily inserted without tools. Simply wire end sheaths need to be applied to the stranded conductors. The DCM 010 is mounted quickly and tool-free using a clip for 35 mm DIN rail according to EN 60715.
The DCM 010 switch module is controlled by its own external, potential-free contact, for example a thermostat or hygrostat, and then switches the connected load as a result of the control pulse. In this case, a control contact signal current of 3 mA at DC 20 V to 17 mA at DC 56 V is safeguarded.
The DCM 010 switch module is designed for long life. It’s NO contact is based on a redundant design with MOSFET components and allows over 100,000 switching cycles. Dust and splash protection is achieved according to protection class IP20. Independently safety tested and approved by such institutions as VDE and UL guarantee objective proof that reassures security in every application.
