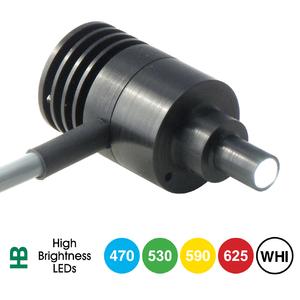

Advanced illumination (Ai) introduces the SL112, a high-brightness LED spot light intended to replace fiber optic bundles and fiber light pipes used with optical microscopes and high magnification video lenses. Specifically designed to fit the coaxial port of a microscope, the SL112 has a nose-piece diameter of 8mm (with a maximum barrel diameter of 25mm) and overall length of 55mm.
The standard model SL112-WHIIC is a white light that incorporates an Inline Current Source (iCS) driver in the light’s power cable. The iCS provides stable current levels to the light, and offers manual intensity control, as well as external control of the gating feature for the light. The SL112 housing features efficient thermal management for extended LED life, and can be built with a variety of power options and in a range of wavelengths, including red (625nm), blue (470nm), green (530nm), amber (590nm) and infra-red (850nm).
The SL112 can also be used as a traditional spot light with the addition of the LN112-30 focusing lens (optional).
Direct-Link Mini Microscope Spot-Light:
http://www.rauscher.de/...
AUTOMATICA
Halle B2 – Stand 302
For more information please contact:
RAUSCHER
Johann-G.Gutenberg-Str. 20
D-82140 Olching
Phone +49 81 42 / 4 48 41-0
Fax +49 81 42 / 4 48 41-90
E-Mail: info@rauscher.de
www.rauscher.de
