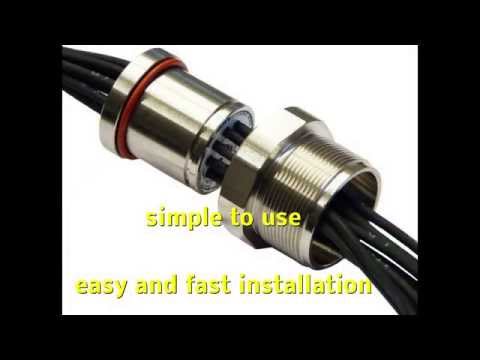

Twin path line bushing for flameproof enclosures

This is the 2nd video of this series showing the application of a 'twin-path line bushing' / This kind of line bushing makes installation of line bushing in flame-proof enclosures (Ex d) easier, much faster and very safe

(PresseBox) (Lauda-Königshofen, ) This is the 2nd video of this series showing the application of a 'twin-path line bushing' .

Find the online video tutorial here: https://www.youtube.com/watch?v=eeB5r951PMc

This kind of line bushing makes installation of line bushing in flame-proof enclosures (Ex d) easier, much faster and very safe.

Varying with the design, line bushings can be used in intrinsically safe, measuring, control or energy circuits By the pluggability you need a locking ring and a screw up protection Standardized the diameter is 10mm up to 40mm variation on this must be approved by a notified body in the case of Ex application.

The use of the 'twin-path' - line bushing is recommended if the location of the strands must be variable to the final assembly, regardless of the final position of the screwed sleeve. Until the final assembly, the cable bushing is rotatable and shall fixed after completion (mandatory).

We recommend to use this line bushing especially for large diameter wires or many strands as a feed through of the ex d enclosure. The possibility of rotating the line bushing to the optimal place for installation of wires at the terminals make the installation safe and easy and takes care for the outer sheath of the cables.

More technical data you will find here: https://www.quintex.eu/en/lb_2path.html

Website Promotion

Quintex GmbH

Quintex GmbH manufactures and supplies material for trace heating (heating tapes, heating cables, controller, connection sets) and explosion protection ( Ex e terminal boxes, pressurized systems, line bushings,own range of local control function, local control stations - all can be specified and ordered online)
