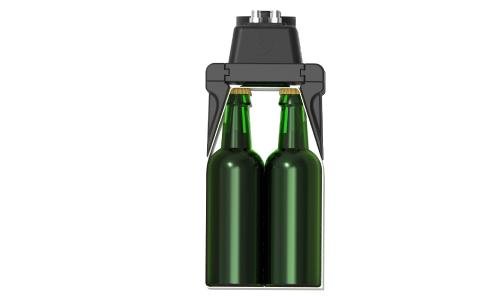

Now available - the gripper for automated handling of six packs
With Piab's new gripper, six-packs with cardboard wrapping can be handled automatically, gently and without leaving any marks. This provides the beverage industry with a new solution for more efficient packaging and palletizing of bottles
The vacuum specialists from Piab, headed by Bernd Gries Manager Global S-Accounts, therefore developed a special gripper with rectangular suction cups. The rectangular suction cups take up the six-pack in only three places. In order to prevent the cardboard from being drawn into it due to the large suction surface and leaving marks, the Piab team developed a corresponding load support as part of the suction cups. This prevents the cardboard from being drawn in and getting damaged.
The gripper is manufactured using a 3D printing process and can therefore be easily adapted to different six-pack sizes. The fastest way to do this is via the exchangeable cheeks, which serve to stabilize the six-pack in the gripper during handling.
In addition to Piab’s rectangular suction cups, the gripper contains powerful COAX® vacuum ejectors. One COAX® ejector is integrated decentrally for each square suction cup. This provides additional safety when handling, because each ejector works independently of the others. So if one ejector fails due to contamination, the six-pack will continue to be held reliably by the other two. The gripper has an automatic blow-off pulse to enable the six-pack to be put down quickly.
This cleans the ejector, channels and the suction cup at the same time.
For customers who have Industry 4.0 interfaces, the gripper offers query options for vacuum process data.
