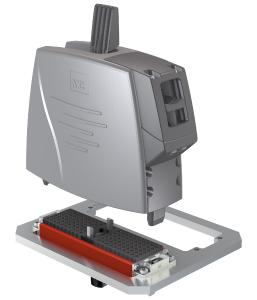

The new CombiTac light housing with centralized locking
Specially developed for test applications that require high contact density
In an electrical testing lab, a large number of signal connections are needed between test instruments and the units under test. They need to be connected quickly and easily— and that’s where the CombiTac light housing comes in, providing for simple, fast and secure connection and disconnection of test instruments and units under test. A quarter-turn of the user-friendly spring locking mechanism locks it in place. Once plugged in, the housing can be opened quickly, allowing for direct access to contacts so that electrical measurements can be made.
The CombiTac light housing can combine signals at high density: up to 320 contacts with a diameter of 0.6 mm. A configuration with other electrical contacts with a diameter of up to 6 mm is also possible. Flexibility, modularity and user-friendly design are once again at the forefront. The system is adaptable and extensible; empty carriers can be used for later expansion, and the coding can also be changed manually on site.
Technical data for the CombiTac light housing: :
Degree of protection: IP20
Housing material: Polyamide (PA)
Mating cycles: 10,000
Temperature range (IEC 61984): -40 °C to +90 °C
Rail length: 94 mm
CombiTac contacts (Ø in mm) : 0.6, 1, 1.5, 3, 6
Our modular connector system allows individual combination of power, signal, thermocouple, coaxial, fibre optic, pneumatic, hydraulic and bus connections in a compact frame or housing. 100% customizable.
CombiTac modular connectors are used in demanding applications that require versatile, reliable and long life connectors. Modular. Compact. Versatile.
