New Pipe Cutting System PTC500 from Messer Cutting System
Quick and easy to the perfect weld preparation - 50° bevels on pipes up to 500 mm diameter
Pipe processing is an important production element in engineering, the steel industry, shipbuilding and the offshore segment. But standard cutting machines and software rarely offer the suitable output results for these demanding operations. “For this reason we have developed the new pipe cutting system PTC500, which combines the most modern plasma technology with user friendly cutting software”, declares Peter E. Schaaf, CEO of Messer Cutting Systems GmbH from Groß-Umstadt.
Expansion for OmniMat® and MultiTherm®
This development became possible amongst other causes, through the close cooperation between Messer and the HGG Profiling Equipment from Wieringerwerf in Holland. Their offline software is the core of the PTC500. “The new pipe cutting system PTC500 complements the standard 2Dcuttign from the machine ranges OmniMat® and MultiTherm®. Both are powerful performers in plate processing and are characterised by the highest degree of flexibility and efficiency. Together with the machine control Global Controlplus there emerges a perfectly matched system which finally makes possible the multiple axis control necessary for efficient pipe processing” explains Peter E. Schaaf.
Pipe cutting procedures made easy
If you suspect that the operation of the system is complicated and burdensome then we have good news for you: only a couple of steps and actions are necessary to prepare for cutting. Thus the pipe is placed on at least two pipe support carriages and positioned close to the chuck. The axis of the pipe and the axis of the pipe drive are made to coincide using a manual (optionally electrical) height adjustment, and the pipe is clamped in a three axis chuck. A self-limiting trapezium threaded spindle keeps the height position constant, once it has been set.

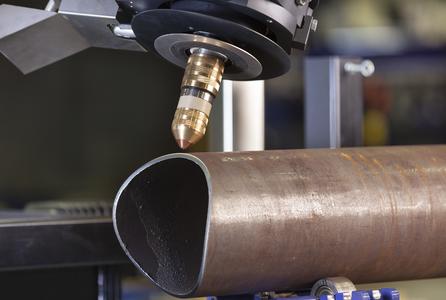

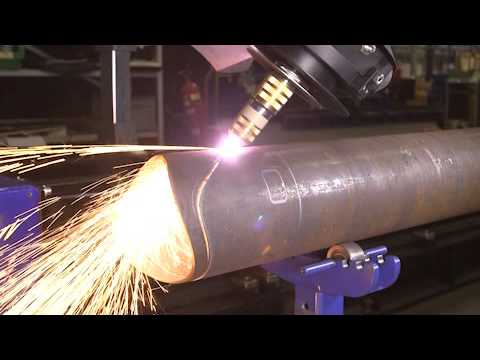

The PTC500 processes pipes with diameters from 50 to 500 mm with wall thicknesses from 2 to 30 mm. The maximum length is 6 m, 2.000 kg the maximum weight. Greater pipe lengths can also be realised on request. For simple pipe separation the plasma torch of the Messer MultiTherm® or OmniMat® can be set perpendicularly to the pipe surface, while the pipe axis rotates. With the plasma units Skew Rotator Infinity or Skew Rotator Delta, weld preparations, for example up to 50° relative to the pipe surface, can be cut. The dust produced is removed instantly by the integrated internal pipe extraction.
The software makes the difference
The essential link between user and the cutting machine is the software from HGG. Thanks to this, pre-programmed macros for pipe ends and pipe to pipe connections can be stored in the Global Controlplus. “The machine operator does not have to retrain at any time but simply accesses the control interface for the appropriate program. Now only the dimensional inputs for the cut need to be added before cutting can start”, adds Peter E. Schaaf.
PTC500 is one of the joint projects between Messer Cutting Systems GmbH and HGG Profiling Equipment, who have united in a strategic alliance. Thanks to the synergy effects both companies can spread wider in the Global Market and consolidate and extend their leading Global Market positions Igor Gieltjes, Commercial Director HGG Profiling Equipment on this topic: “HGG offers high technology solutions for the world-wide steel industry. Supported by the global marketing network of Messer Cutting Systems, our customers have now a direct access to cutting solutions for all 3D steel sections”.
Messer Cutting Systems GmbH
The product range includes oxyfuel, plasma and laser cutting systems, from hand-guided machines right up to special machines for shipbuilding, as well as plant and equipment for oxyfuel welding, cutting, brazing and heating. Spare parts, repairs and modernisation services round off the program as well as environmental equipment for the systems. The software solutions optimise production and business processes. The focus lies on intensive dialogue with our customers – a modern training and application facilities reinforce this claim. For more details visit www.messer-cs.com.
