toolcraft and PCam reinvent the automation era
No standard solution
toolcraft is collaborating with the Swiss company PCam to develop a novel automation solution over a workspace of 80 m². Focussing once again on the competitive advantage to be gained from innovation, toolcraft is also investing to expand its machine park and is planning to use the automation project as a showcase for future customers. The custom solution will combine two Hermle C32 machining centres. “Our aim is to machine 24 hours a day, 7 days a week,” says Christoph Hauck, Managing Director of toolcraft. “With this in mind, we were looking for an automation solution that would match our specific requirements. PCam is the perfect partner to help implement the innovative production method.”
A new dawn for automation

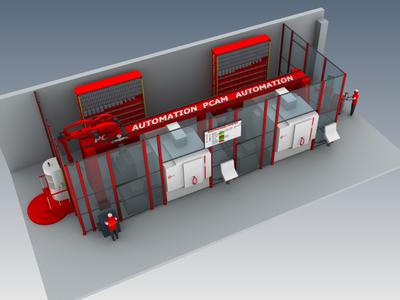

In contrast to typical automation solutions, the robot in this solution travels on a portal above the machines and loads them from above through a hatch. It also inserts the necessary milling tools automatically into the integrated milling tool changer. The benefits are clear, as the design not only saves space, but guarantees flexible machining as well. This is because the operator can still access the Hermle machining centres directly to operate them manually, independently of the automated processes. This flexibility is particularly important when it comes to machining small and medium-sized series. Storing the milling tools externally also has a significant cost benefit, as large milling tool magazines are not needed in the machining centres.
Fully automated production
Components are still programmed in the same way as before, while the automation system’s cell controller accesses the approved machining programs directly and the machining jobs are prioritised at the automation system terminal. The robot automatically fetches the workpiece pallets for machining and the required milling tools from the shelf, loads the machines and starts the machining runs, before returning the finished parts to the shelf. Tools and material are provided and workpieces are removed via the loading and unloading stations, allowing the operator to plan production for when the machinery is unattended. This enables jobs to be processed at the weekend, for example, and the finished parts to be transferred out of the automation system at the start of the following week. The PCamCell software is the system control centre. It plans and controls the process predictively, checking whether adequate material and the necessary milling tools are available to ensure smooth, flexible and consistently reliable production.
The automation solution can also be used with existing machines. In fact, the guiding principle of Alex Magnetti, owner of PCam, is “Use what you have”. “Our concept is completely independent of machine manufacturers and machine technologies. We provide chains of all kinds, connecting extremely different machines to one another – with or without robots.” The system at toolcraft is also modular and extensible, with plans to expand it already in the pipeline. “It can also be linked to our ERP system, which would enable the software to determine the machining sequence fully automatically in line with our delivery deadlines,” says Christoph Hauck. That would represent yet another step towards Industry 4.0.
MBFZ toolcraft GmbH
Based in Ticino, Switzerland, PCam has been conducting software and hardware automation projects with its clients since 1994, concentrating primarily on developing systems for the machining of single parts or small runs, as well as for tool, mould and die production.
In addition to comprehensive automation solutions, PCam's product portfolio includes a process and detailed planning system, as well as CAM systems for die sinking EDM (independent of the EDM manufacturer), wire cutting EDM and automated in-process measurements.
As a partner of engineers of almost all industrial sectors Toolcraft manufactures precision parts, assemblies, moulds and injection moulded parts. Industries are for example the semiconductors, optical industry, special machinery manufacturing, motor sports and automotive, medical technology as well as the aerospace sector.
Thereby Toolcraft values long-term business relationships. Part of the corporate philosophy is an intensive cooperation with partners, such as Unicam Software GmbH, YPTI Indonesia, CONCEPT Laser GmbH, Solidpro GmbH. Therefore Toolcraft is able to offer technologically and economically convincing holistic solutions in the shortest possible time.
The medium-sized family-owned company, located in Georgensgmünd and Spalt, was founded in 1989 by Bernd Krebs.
