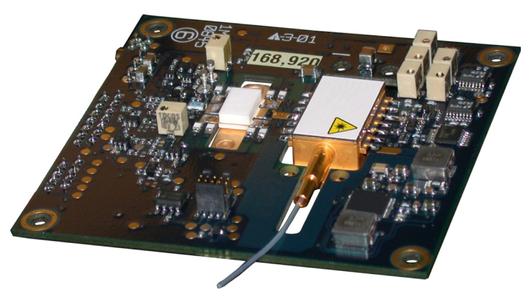

AMI’s Model 762 OEM programmable seed laser diode drivers (pump laser diode drivers) are ideal for driving 14-pin butterfly packaged laser diode modules for use in CW or Pulsed fiber MOPA systems.
Applications include materials processing, LIDAR systems for remote sensing, laser communication and rangefinding. The driver circuitry operates from a single +5V power source and is capable of providing up to 2.5A of drive current with compliance voltages up to 2.5V. Pulsewidths down to 20ns or less are possible with typical optical pulse risetimes of 10ns. Settings can be made through analog operation by the use of multi-turn potentiometers and providing an external TTL trigger pulse or through the on-board FPGA which contains a comprehensive pulse generation system. The board includes a bidirectional PID thermoelectric cooler controller, provides sensing for a back facet monitor and outputs a digital laser fire indicator pulse and scaled analog output. RoHS and military versions are available.
About Analog Modules, Inc. :
AMI designs and manufactures a wide range of analog electronic products for the laser and electro-optics industries. These products serve applications in medical, military, scientific, and industrial markets.
Our products include laser diode drivers, Pockels cell drivers, laser power supplies, capacitor charging power supplies, CW arc lamp power supplies, pulsed flashlamp drivers, laser diode drivers, simmer supplies, laser rangefinder receivers, laser spot trackers, photodetector amplifier modules, HV bias supplies, fiber optic links, fast peak pulse stretchers, transimpedance amplifiers and logarithmic amplifiers
