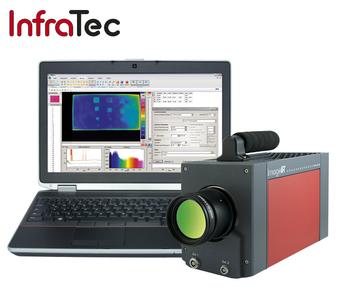

With its ImageIR® 9300, InfraTec introduces a new first class high-resolution thermographic camera model of the high-end camera series ImageIR®. For the first time, it is equipped with a cooled focal-plane-array photon detector of the latest generation and a format of (1,280 x 1,024) IR pixels, which is a four times higher resolution than other available first class models can display. In combination with the outstanding thermal resolution of 0.02 K (20 mK), very high frame rates of 106 Hz and extremely short integration times of only a few microseconds, this camera offers you a whole new range of applications.
ImageIR® 9300 was developed for demanding operations in research and development, non-destructive material testing and process monitoring sectors. Its modular structure, which consists of the optical-, detector- and interface modules, makes the camera easily adaptable to the respective application.
An integrated trigger interface guarantees a repeatable high-precision triggering of quick procedures. Two configurable digital in- and outputs serve as control ports for the camera or as generator of digital control signals for external devices.
The optical channel consists of the exchangeable infrared lens as well as application-specific apertures, filters and reference- and optical elements. All exchangeable standard full-optics of the ImageIR® can be equipped with a motorised focus unit, which is operated from the camera's application software. It allows for quick, precise and remotely controllable motorised focusing and is part of the available auto-focus feature.
In combination with the thermographic evaluation software IRBIS® 3 professional by InfraTec, the ImageIR® 9300, as an efficient high-performance tool, sets new standards for demanding thermographic studies.
ImageIR® 9300 was developed for demanding operations in research and development, non-destructive material testing and process monitoring sectors. Its modular structure, which consists of the optical-, detector- and interface modules, makes the camera easily adaptable to the respective application.
An integrated trigger interface guarantees a repeatable high-precision triggering of quick procedures. Two configurable digital in- and outputs serve as control ports for the camera or as generator of digital control signals for external devices.
The optical channel consists of the exchangeable infrared lens as well as application-specific apertures, filters and reference- and optical elements. All exchangeable standard full-optics of the ImageIR® can be equipped with a motorised focus unit, which is operated from the camera's application software. It allows for quick, precise and remotely controllable motorised focusing and is part of the available auto-focus feature.
In combination with the thermographic evaluation software IRBIS® 3 professional by InfraTec, the ImageIR® 9300, as an efficient high-performance tool, sets new standards for demanding thermographic studies.
