Target frame for photogrammetry measuring systems

Control 2012, Hall 5, Booth 5106

(PresseBox) (Bleckede, ) Setting frames are used where there is no fixture available on which to mount reference markers or targets.

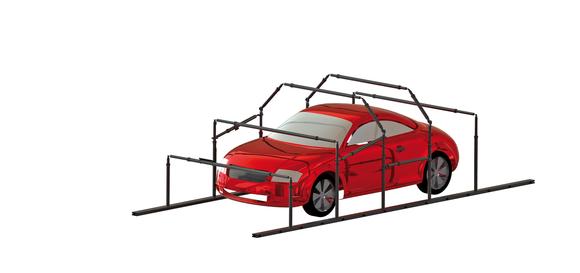

The components can be connected as a flat frame and several frames connected using struts represent a complete cell. All elements are combinable with each other and equipped with targets. Additional targets can be clipped on. The basis comprises of rails (in Aluquick) for positioning and securing telescopic columns (Telefix). Alternatively they can be set up on an Alufix frame or a Witte sandwich plate. To accommodate a vehicle roof, taper serrated joints in Posifix enable angling of frame segments. All cross struts are engineered with a telescopic function (in several basic lengths and corresponding adjustment ranges). This guarantees maximum flexibility in creation and desired size of frame. All rails and telescopic columns are marked with scales in millimeter to enable repeatability of frame when rebuilding.
