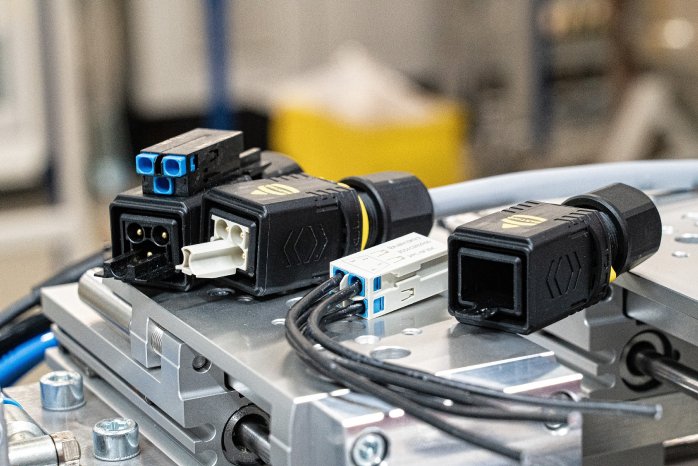

The HARTING Technology Group is proud to introduce the new PushPull V4 Power QuickLock, an innovative addition to the proven PushPull connector family. This new product features Han QuickLock termination technology, enabling fast and tool-less assembly directly on site.
The PushPull V4 Power QuickLock connectors provide a reliable and user-friendly solution for power supply in compact and robust applications. Thanks to the QuickLock technology, users benefit from field-assembly without the need for special tools – ideal for flexible use in automation, machinery, robotics, railway and other industry and outdoor applications.
Compact, powerful, and safe
The new PushPull V4 Power QuickLock variants are plug-compatible with the existing PushPull Power connectors with crimp connection, yet offer significant advantages:
Versatile applications
The HARTING PushPull connector family is the universal solution for transmitting power, signals, and data in industrial environments. Easy handling, high assembly density, and outstanding signal integrity make PushPull the first choice for modern industrial electronics.
The PushPull V4 Power QuickLock connectors provide a reliable and user-friendly solution for power supply in compact and robust applications. Thanks to the QuickLock technology, users benefit from field-assembly without the need for special tools – ideal for flexible use in automation, machinery, robotics, railway and other industry and outdoor applications.
Compact, powerful, and safe
The new PushPull V4 Power QuickLock variants are plug-compatible with the existing PushPull Power connectors with crimp connection, yet offer significant advantages:
- Tool-less assembly with Han QuickLock
- Compact housing with high protection class (IP65/67)
- High current carrying capacity with minimal space requirements
- Innovative PushPull locking mechanism with audible “click”
- Touch-proof protection on both plug and receptacle sides for safe installation
- Four different coding variants without loss of contact
- Various termination technologies for individual device integration
- Han QuickLock termination technology
- Touch-proof according to IEC DIN EN 60529
- Conductor cross-section: 1.5 – 2.5 mm² flexible
- Available for 48 V DC / 12 A (4-pole) and 250 V AC / 16 A (2-pole + PE)
- 0946 145 3510: PP-V4-CC-P-250V/16A-3p-QL-P-2.5mm²
- 0946 145 4510: PP-V4-CC-P-48V/12A-4p-QL-P-2.5mm²
Versatile applications
The HARTING PushPull connector family is the universal solution for transmitting power, signals, and data in industrial environments. Easy handling, high assembly density, and outstanding signal integrity make PushPull the first choice for modern industrial electronics.
