New Version of Calculation Software for Gearboxes
Software company GWJ Technology GmbH, headquartered in Braunschweig, Germany, has launched a new version of TBK, its calculation software for machine elements and gearboxes.(PresseBox) ( Braunschweig, )
One example is the new menu item "New". Clicking the menu item "New" closes the current calculation and opens the calculation module with the internal TBK default setting for all values.
The calculation modules "Cylindrical single gear“, "Three- and four-gear train systems“ as well as "Gear rack" have been enhanced. The modules now include DIN 58405 for fine mechanics, ISO 1328 and ANSI/AGMA 2015 in addition to DIN 3961 for gear tolerances/gear qualities.
The SKF bearing selection in the bearing module has also been updated. The new filtering function enables user to search for "Popular items" easier and faster. Popular items have a high level of availability and generally provide a cost-effective solution. The new release also adds SKF Explorer bearings. The Explorer bearings are marked which makes it much easier for customers to select the right bearing. There is also a new direct link to open the SKF online catalogue.
For the DXF output of the 2D gear tooth form, a new function for setting the minimum point distance has been added to all gear modules. This makes it easy to set the accuracy and point density for the output of the tooth form in order to use it for wire and laser cutting.

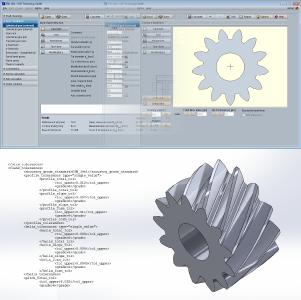

Data reuse seems like a topic that’s been covered for a long time, especially in the industry 4.0 era. With the integration of the standardised GDE format into the modules for gears and involute splines, TBK takes a step closer to a seamless data workflow.
GDE stands for Gear Data Exchange. This format, which is defined in VDI/VDE guideline 2610, is already supported by many measuring machine manufacturers. With the GDE format, geometries of cylindrical gears and involute splines can be loaded directly from the software into the measuring machine. It only takes a few clicks to create a measuring program. This avoids transmission errors and allows to work with standard measuring instructions. By means of the GDE format, data transfer to cutting machines could be also an option.
