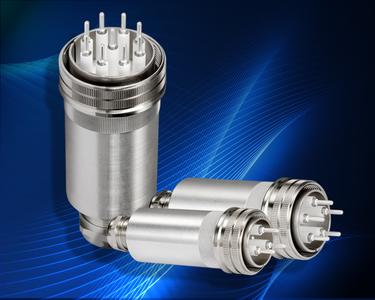

Versatile multi-pin connector from GES Electronic & Service

high voltage connectors Series-M for up to 12 kVDC / 30 A

(PresseBox) (Hallbergmoos, ) GES Electronic & Service – a leader in high voltage connectivity – provides a very adaptive and flexible multi-pin HV-connector. Series-M is available in 4 sizes, 5 basic types, 15 contact arrangements and 111 configurations. This master of transformation is particularly suitable in- and outside of high voltage equipment and appliances for testing & measurement technologies as well as for analysis-, laboratory- and medical-technologies and power electronics in general.

Series-M is suited for operational voltages up to 12 kVDC (testing voltage 18 kVDC) at currents of up to 30 A (max. operating current 40 A) and is available with up to 9 pins. Dependent on the connector type the insulation material is either POM or PTFE both of insulating material group 1 according to DIN IEC 60664. The robust metal housing made of nickel-plated aluminum corresponds with protection class IP54 (in mated condition) and is locked by a screw cap.

Both sides of the connection can be assembled either as plug or socket while the cable-side comes with EMC cable glands. Series-M uses silver-plated solder contacts of 2.7 mm diameter and AWG 14 (2.5 mm²) in cross section. Also one or more leading contacts can be assigned to execute a starting sequence or as an earth connection or to confirm a safety loop.

The high voltage connectors of GES Electronic & Service are worldwide proven in a multitude of HV-applications and are seen as a reliable, durable and well-engineered solution.

Website Promotion

GES Electronic & Service GmbH

GES Electronic & Service GmbH is a German manufacturer and specialist for high voltage interconnections in Hallbergmoos near Munich.

The company designs and markets high-voltage connectors in diverse configurations for operating voltages up to 100 kVDC as well as modular high voltage interconnection systems combinable with pneumatic-, power-, signal- and data-transmission for complex applications.
In addition to their standard series GES Electronic & Service GmbH provides great competence for custom solutions, developments and adjustments.

Areas of application mainly are acceleration- and pulse voltages for ionization and electrostatic processes in detection and analysis, medical- and biotech, semiconductor- and microelectronics, nuclear- and particle physics and the according measurement- and testing technologies as well as power electronics in general.

GES Electronic & Service GmbH has been a reliable partner and OEM-supplier to customers throughout Europe, the United States and worldwide for almost 25 years. The products and solutions of the company are manifold and worldwide proven in a multitude of high voltage applications and are seen as a reliable, durable and well-engineered solutions within their segment.
