Angle Seat Globe Valves now with New Flanged Connections

(PresseBox) (Ingelfingen-Criesbach, ) The GEMÜ range of manual and pneumatic angle seat globe valves are now available with flanged connections to EN 1092 and ANSI.

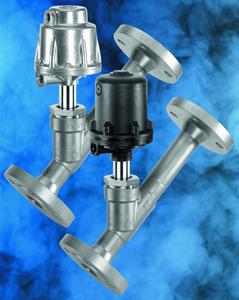

The manually operated type 507 and the pneumatically operated types 514 with aluminium piston actuator, 550 with stainless steel piston actuator and 554 with plastic piston actuator are now available with flanged connections in nominal sizes DN 15 - 50. The new flanged valve bodies are made of cast stainless steel 1.4435 (AISI 316L). Flanges are to EN 1092/PN25/form B and ANSI class 125/150 RF. In order to be able to flexibly react to customer requirements in the most varied regions, the flanges are welded on the basic cast bodies. This ensures good availability and short delivery times. Flanges are mainly used in industrial plant construction as they can be installed and removed more easily compared to butt weld and threaded connections. The valves are mainly used for control and regulation of steam, water as well as slightly corrosive liquid media and gases.
