16 megapixel for finest

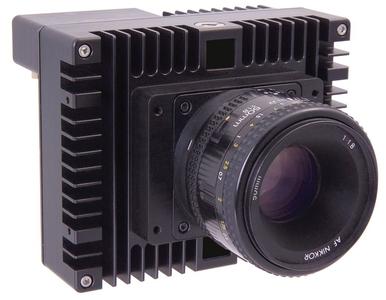

These top of the line camera models of the MegaPlus series offer the resolution and image quality needed for sophisticated industrial and scientific applications. Ideal for medical imaging digitalising, they reach a colour depth of true 12 bits per channel with a resolution of 4872 pixels × 3248 pixels. The camera is available with a colour or a greyscale sensor and stands out due to its exceedingly low image noise. To prevent even finest details from being obscured by noise, the camera uses optimised "shooting conditions": The compact enclosure houses a 16 megapixel interline progressive scan CCD with a sensor area of 36 mm × 24 mm. As a result, a comparatively large area of 7.4 mm × 7.4 mm is available for each pixel. In addition, passive (EP16000) or active (EC16000) cooling and an optional fan lower the sensor’s temperature and hence, image deterioration caused by dark current noise is reduced to a minimum. Camera data can be transferred at full resolution with a rate of up to 3.2 fps using a FireWire or CameraLink interconnection.
