New 31.5-inch Quad Full HD LCD Monitor from eyevis

With this new monitor eyevis enlarges its range of highest reolution displays

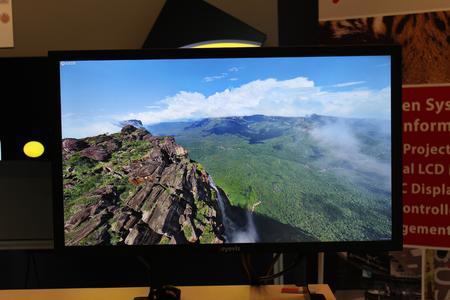

(PresseBox) (Reutlingen, ) –With the market introduction of the new EYE-LCD-3150-QHD-LD monitor and its 31.5-inch screen diagonal, eyevis presents its next ultra high-resolution display with 4 x full HD resolution. This high resolution of 3840 x 2160 pixels is achieved through a revised and highly compact pixel design. In comparison to a standard HD panel, the image density of the new quad full HD display (type EYE-LCD-3150-QHD-LD) is twice as high at approx. 140 ppi. The new display also proves its value through its excellent image performance: 10 bit colours and a direct LED backlight illumination ensure best image reproduction, while modern technology provides a viewing angle of 176° in all directions. This now completes the eyevis Quad HD monitor family, as a 60” and a 56” are already available.
For the display signal supply, eyevis has developed its own frame buffer board with 4 DVI-D inputs. Combined with professional high performance graphic cards it is possible to create a high resolution visual display system at a competitve price.
The new 31.5-inch LCD is primarily intended for special e-Signage applications. For example: thanks to the extremely high resolution, images from numerous security cameras can be displayed in security control rooms in full resolution in parallel on one screen. The control of complex manufacturing plants can also be presented clearly, thanks to the high resolution. This is also vital in the medical sector for imaging diagnosis. Presentation in 8.8 million pixels allows for exact interpretation of X-rays or CT scans (for example), in the same way as classic films. Further fields of application are in design and architecture were it will enable the users to view their material in its native resolution, allowing for more precise editing.
The monitor is perfect for various areas, like for car design reviews or other design simulations that utilize large amounts of computer graphic content, it is also suitable for port authorities or other traffic management systems that utilize map information and security camera images, it can also ideally be used for a briefing and supervising of power or other utility network management systems that display detailed network information, radiology, financial services, mapping, satellite imagery, utilities, government, armed forces and many others.
In addition to being able to duplicate a large-display system at a trickle of the cost, the cost of ownership is further reduced by a significantly longer operating life time and lower power consumption through the LED backlight technology compared to other systems with similar resolution. Also the EYE-LCD-6000-QHD in 60” is available with the latest direct LED backlight technology. Similar systems in the market still use conventional CCFL technology.

Resolution 3,840 x 2,160 pixels
Active Screen Area 697.92 x 392.58 mm
Brightness 450 cd/m2 (typ.)
Pixel Pitch 0.18175(H) x 0.18175 (V)
Contrast 1,000:1 (typ.)
Polariser Anti Glare, Low Reflection,
Hard Coating: 3H
Response Time 8 ms
Data Depth Colour 10 Bit
Frequency 50/60Hz
Viewing Angle 176° / 176°
Input Connection 4 x DVI Single Link
Back Light Direct LED

eyevis Gesellschaft für Projektions- und Großbildtechnik mbH

About eyevis
eyevis, the German manufacturer of large screen systems, is one of the leading suppliers and integrators of visualisation systems for professional applications in control rooms, as well as virtual reality and simulation. eyevis has a worldwide network of subsidiaries and certified sales partners. As one of only a few suppliers in its field, eyevis is able to offer complete systems from one source. The complete solutions from eyevis include display solutions, graphics controllers, software applications and all necessary accessories.
