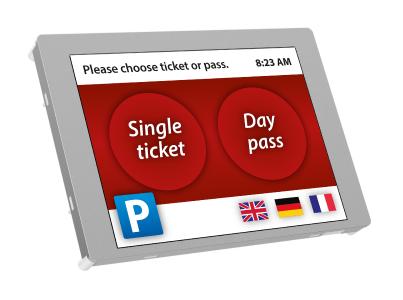

EVERVISION presents his new 5.7” TFT VGA Super High Brightness with Ultra Wide View

(PresseBox) (Karlsruhe, ) EVERVISION Electronics Europe is pleased to introduce the new 5.7” TFT VGA super high brightness with Ultra Wide View. This is the perfect solution for outdoor industrial applications.


EVERVISION’s new 5.7” TFT VGA (VGG644804-6UFLWU) display features 640 x 480 resolution and LVDS 18 bit interface. Designed with a high-efficiency power LED backlight, the display achieves a super high brightness of 1300cd/m², which makes it easily readable even in bright, sunny environments.

EVERVISION’s new TFT-LCD offers a wide operating temperature range of - 30° / 80°C. Together with the long term availability the display is ideal for industrial applications. Using Evervision Ultra Wide View (UWV) polarizer technology, the display provides a wide viewing angle in all directions 80°/80°/80°/80° and eliminates colour inversion.

The backlight itself is specially designed to allow low power consumption by selecting a lower backlight current. The power consumption of the display backlight is 2.88W @ 1300cd/m². It can be reduced for example to 0.576 W @ 260cd/m² = 20% only. This is suitable for applications that need lowest self heating effect. Also the LED backlight lifetime of 40khrs (min.) at 25° can be managed by the customer to achieve a maximal lifetime.

The resistive Touchpanel or the IPCT (USB or I²C) are available optionally. The version without Ultra Wide View is also available. VGG644804-6UFLWV achieves a super high brightness of 1800cd/m².


Evervision’s super high brightness TFT display is optimal for daylight applications like parking pay station, E-Car charging point, automatic car wash POS, outdoor terminals, payment kiosk and more.

Availability of Samples

Samples for VGG644804-6UFLWU are available. The MOQ is 540pcs. For any further question please feel free to contact us.

Website Promotion


EVERVISION ELECTRONICS EUROPE wurde vor 10 Jahren als Schwesterfirma der EVERLIGHT Electronics Europe GmbH gegründet und ist als Anbieter auf optoelektronische Produkte wie LCD, TFT und kapazitive Touchpanel spezialisiert. Neben Standard-Displays werden von dem taiwanesischen Hersteller auch kundenspezifische Displaylösungen angeboten.

Der Hauptsitz der Unternehmensgruppe und das Management befinden sich in Taiwan, die Produktion in China. Der europaweite technische Support, Import und Logistikservice werden von qualifizierten Mitarbeitern in Karlsruhe gewährleistet.
