Robust data transfer over greater distances for industrial applications

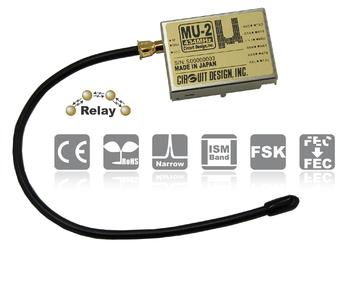

Embedded low-power radio modem MU-2-R from Circuit Design for the licence-free 434 MHz frequency band

(PresseBox) (München, ) The embedded low-power radio modem MU-2-R from the Japanese radio module expert Circuit Design, Inc. is now available in Europe. The MU-2-R is intended for use in industrial applications and facilitates the efficient and cost-effective design of reliable radio solutions for signalling and device control. The technical highlights of the MU-2-R include 127 available channels in the licence-free 434 MHz frequency band, robust channel coding with forward error correction (Reed-Solomon code) at speeds of up to 4,800 bps, energy-saving design with optional 1 mW or 10 mW output power, range of 500 to 700 metres, integrated relay operation mode to cover greater distances.

Circuit Design now provides a new transmission and reception system specially tailored to the requirements of device manufacturers, solution providers, OEMs and for industrial use. The embedded low-power radio modem MU-2-R allows users to quickly and cost-effectively develop radio solutions in industrial applications for the reliable transfer of signals over distances of several hundred metres. The new MU-2-R, which is just 36 × 26 × 8 mm in size, fulfils the requirements of the R&TTE directive (Radio and Telecommunications Terminal Equipment), is CE certified and supplies a continuous transfer rate of up to 4,800 bps in the licence-free 434 MHz frequency band (127 channels). It further allows users to develop their own solutions for device control and data transfer very quickly using the UART interface.

A technically mature alternative to ZigBee® or Bluetooth®

The new MU-2-R provides an improved coding procedure with forward error correction (Reed-Solomon code) that guarantees the secure transfer of data, even when burst errors occur or signal levels are low. With 10 mW output power of, the radio modem covers distances of between 500 and 700 metres. If end points further apart than this need to be connected, the range can be extended by adding additional MU-2-R modules; the necessary relay operation mode has already been integrated into the circuitry. The low-current MU-2-R allows independent operation by battery (e.g., supplied by solar energy) so that radio solutions can be realised without the need for complex infrastructures.

The device can be operated in a broad temperature range from -20 °C to +65 °C, making it highly versatile both indoors and outdoors, from use within individual buildings to remote data transmission covering expansive areas. Also, solutions based on the narrow band radio technology from Circuit Design offer several advantages over standards such as ZigBee® or Bluetooth®, including the robust transfer of data over greater distances, as well as the availability of 127 channels in the 434 MHz band. This makes it possible to avoid collisions and errors while operating a multitude of parallel applications compared with established WLAN and Bluetooth applications.

The embedded low-power radio modem MU-2-R is available from Circuit Design's distributors in various Europan countries. To find your distributor, please refer to

For more information, visit us at


Circuit Design GmbH based in Munich, Germany, is a subsidiary of Circuit Design, Inc., Japan. The subsidiary was founded on 1 January 2001 and provides excellent technical and logistics support for customers in Germany, Austria and Eastern Europe.

The parent company Circuit Design Inc. has been, among other things, designing and manufacturing data and audio radio modules since 1974 and has several production facilities at its disposal. Among the company's key products are data radio modules for European ISM bands. Available products include single- and multi-channel sender, receiver and transceiver modules for narrow and wide band. These products are designed so as to ensure low energy use and large transmission ranges. All standard modules comply with the European EN standards and are registered with, amongst others, BNetzA (German Regulatory Authority for Industries: Telecommunications, Postal Services, Railways, Electricity).

Circuit Design is renowned for its high-quality radio modules that have become recognised as the worldwide industry standard in the area of radio remote control. The development and production processes in Japan have been certified to be in conformance with ISO 9001, which ensures the quality of the company's products.
