Data acquisition systems USB-AD, USB-PIO: Where is the measurement device?
A unique idea has been launched by BMC Messsysteme GmbH, longtime manufacturer for measurement technology "made in Germany". The USB measuring systems USB-AD and USB-PIO have been compressed extremely and integrated into a Sub-D connector housing.(PresseBox) ( Maisach, )
No, of course not! A "Software Collection" CD is included as well.

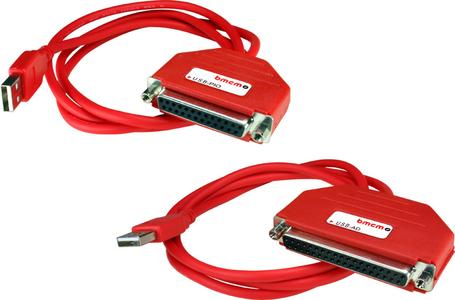

Everybody who is not discouraged until now, and connects the USB cable to the PC, will see that into the red plastic housing of the Sub-D connector highly compressed measurement technology has been put: the USB data acquisition system.
Two types of the measurement devices in plug housing are available: With the USB-AD up to 16 analog signals can be sampled in the +/-5V measuring range with 12Bit resolution. In addition, one analog output and four digital inputs and outputs each are provided.
For exclusively digital applications the USB-PIO features 24 digital lines, which are switched between input and output in groups of 8.
With the USB measurement systems USB-AD and USB-PIO BMC Messsysteme GmbH (bmcm) managed to create an extremely space-saving device perfectly suitable for mobile data acquisition via USB at a labtop. Of course, the devices provide USB-specific features like "Plug&Play" and "Hot Pluggable".
Included for free is the software NextView 4 Live! for Windows 2000/XP/Vista to visualize signals directly at the PC and test the complete functional range of the devices.
(--> www.bmcm.de/... )
However, the use of the USB systems is still not at the end. The operation and free programming of the USB-AD and the USB-PIO is possible under Mac OS X and Unix (FreeBSD, Linux), too.
USB-AD und USB-PIO are unrivaled - not just because of their size: unbeatable as well is their price. Further information can be found on the web at www.usb-ad.de and www.usb-pio.de .
