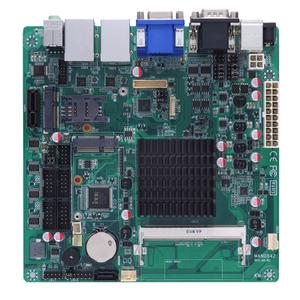

Quad-Core Industrial Mini-ITX Motherboard with Excellent Graphics Performance - Axiomtek MANO842

(PresseBox) (Langenfeld, ) Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, has launched its new industrial Mini-ITX motherboard,MANO842, featuring quad-core SoC, fanless design, advanced graphics performance, and 12VDC/STD ATX power input. The powerful MANO842 is equipped with a quad-core Intel® Celeron® J1900 processor with Intel® HD Graphics engine, delivering outstanding computing, graphics and media performance at a competitive price. The cost-effective industrial-grade motherboard utilizes high bandwidth DDR3L-1333 SO-DIMM with system memory up to 8 GB and a rich set of I/O features. With 12V single voltage DC power or STD ATX jack, the ultra-compact Mini-ITX mainboard can be widely applied to automation and embedded industries, including medical healthcare, in-vehicle infotainment, kiosk, digital entertainment, digital signage, POS and much more.

"Measuring 170 x 170mm the MANO842 features rich I/O and great expansion capability, specially tailored for space-concerned applications and unique thermal solutions. With one PCIe x1 slot, one PCI Express Mini Card interface, and one mSATA socket, the versatile Mini-ITX motherboard can fulfill great expansion needs. Various display interfaces support dual-view via VGA, HDMI and 18/24-bit dual-channel LVDS to meet the growing demand of high quality output," said Ken Lin, product manager of Product Planning Division at Axiomtek. Additionally, it is ideal for handling the most demanding HD video formats for immersive multi-display applications and environments. The Intel® quad-core Bay Trail embedded board offers superior connectivity, including six USB ports, six COM ports (two RS-232/422/485), one PS/2, one digital I/O (8-IN & 8-OUT) and two Gigabit Ethernet ports support WoL (Wake-on-LAN) & PXE.

The MANO842 comes with one SATA-300 interface, one mSATA interface, five USB 2.0 ports, one USB 3.0 port, one PS/2 KB & MS, two Gigabit LAN ports, LVDS, VGA, HD audio and 8-In/8-Out digital I/O. To ensure reliability and stability, the built-in watchdog timer precisely controls the embedded board, recovering and resuming playback from power, network, or other disruptions to successfully avoid permanent crash.

Axiomtek's cost-effective quad-core SoC Intel® Celeron-based MANO842 is going to be available in September, 2015. We provide a wide array of industrial embedded boards and modules. For more product information or pricing, please visit our global website at or via FacebookTwitter andYouTube. Please contact one of our sales representatives at

Advanced Features:

- Intel® quad-core Celeron® J1900 SoC (Intel® Bay Trail-D 2.0 GHz) processor
- One 204-pin SO-DIMM dual channel DDR3L-1333MHz max. up to 8 GB
- 1 PCIe x1 supported
- 1 PCI Express Mini Card supported
- 5 USB 2.0 ports and 1 USB 3.0 port supported
- 1 SATA-300 and 1 mSATA supported
- 6 COM ports supported (COM1 and COM2 support RS-232/422/485)
- ATX 12V or 12V DC Jack supported
- Dual-view display via VGA, HDMI and 18/24-bit dual-channel LVDS
