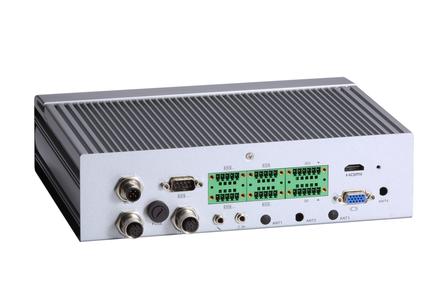

Axiomtek Introduces an EN50155 Railway PC, tBOX323-835-FL

Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, has launched its tBOX323-835-FL for in-train applications. Integrated with onboard quad-core Intel® Atom™ E3845 processor and 4 GB low-powered DDR3L memory, the fanless railway embedded system boosts its computing performance and specializes its I/O design with five isolated COM ports, two M12-type LAN connectors, USB 2.0 ports, and one isolated digital I/O. The railway PC also provides VGA and HDMI outputs for in-train surveillance. The tBOX323-835-FL is an ideal all-in-one IoT (Internet of Things) solution for various applications, including railway multi-functions of gateway, controller, digital signage management and surveillance. Certificated with EN50155 and EN50121 for rolling stock and complied with EN45545-2 for fire resistance, the rugged system operates reliably in a -40ºC to 70ºC operating temperature range (EN50155 Class TX) and in a high vibration environment.

Advanced Features:

- Intel® Atom™ Bay Trail-I E3845 (4C@1.91GHz) processor onboard
- High performance DDR3L-1333 4GB memory onboard
- EN50155, EN50121, EN45545 certifications
- Fanless operating temperature range of -40°C ~ +70°C(EN50155 class TX)
- Isolated RS-232/422/485 and DIO
- Lockable I/O interface and M12 LAN, power connector
- Support USB 2.0 and SATA2 interfaces
- suspension 2.5” SATA HDD and one CFast
- Internal PCI Express Mini Card slot and SIM socket
- Best IoT-related embedded platform for intelligent transportation solution

For further product information:
tBOX323-835-FL
