(pressebox) (Klingenberg am Main, 18.03.2020) Lantech IES-0016 and Lantech IGS-0016 provide ± 2000 EFT and ± 6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines.

IGS-0016-E and IES-0016-E models can be used in extreme environments with an operating temperature range of -40°C to +75°C. Standard models have an operating temperature range of -20°C to +60°C.

The E-marking certificate makes it the most suitable switch for bus, carriage and other vehicles as well as for industrial areas.

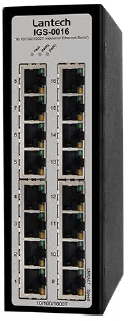

IGS-0016

• 16 10/100/1000T Industrial Unmanaged Switch (24V model)
• Dual 9V~36VDC with ISO7637-2 compliance
• Back-Plane (Switching Fabric): 3.2 Gbps
• Provides EFT protection ± 2000 VDC for power line
• Supports ± 6000 VDC Ethernet ESD protection
• Galvanic Isolation between power input/Ethernet port and case ground; between power input and Ethernet port
• E-marking certificate for vehicle application (24V model)
• Relay alarm output for power fail and alarm
• IP30 metal housing with DIN rail and optional Wall-mount design

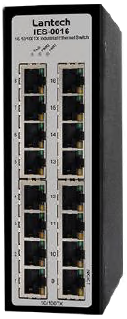

IES-0016

• 16 10/100TX Industrial Unmanaged Ethernet Switch (12V input model)
• Dual 9V~60VDC power input for 12V model with ISO7637-2 compliance
• Back-plane (Switching Fabric): 3.2 Gbps
• Provides EFT protection ± 2000 VDC for power line
• Supports ± 6000 VDC Ethernet ESD protection
• Galvanic Isolation between power input/Ethernet port and case ground; between power input and Ethernet port
• E-marking certificate for vehicle application (12V model)
• Relay alarm output for power fail and alarm
• IP30 metal housing with DIN rail and optional Wall-mount design
