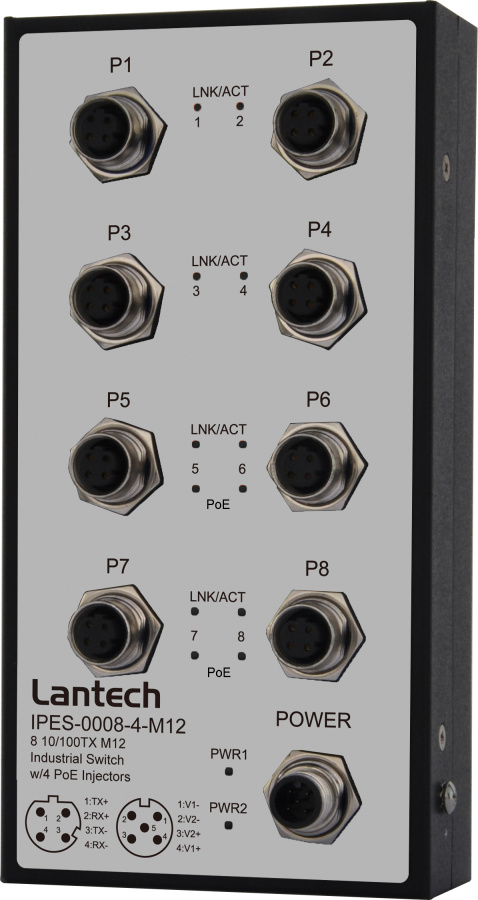

(pressebox) (Klingenberg, 28.07.2011) Lantech IPES-0008-4-M12 is an 8 10/100 Base-TX with M12-connctor Unmanaged Industrial Switch for IP41 rated protection, which meets the high reliability requirements demanded by industrial applications. It provides 4 PoE injectors and fully complies with IEEE802.3af PoE standard, providing 15.4W per PoE port at 24~48VDC power input.

The IPES-0008-4-M12 is designed to meet with critical network environment and has passed harsh environmental testing to comply with Industrial EMI and Safety standards. It also passed stability testing such as Free fall, Shock, and Vibration. For a greater flexibility in application the IPES-0008-4-M12 supports an extended operating temperature range from -40°C to 75°C.

The IPES-0008-4-M12 is compliant with EN50155/ 50121-3-2/ 50121-4* (railway applications), NEMA TS2* (Traffic Control System) and e-Mark*, making the switch suitable for a variety of industrial applications.

Other Features:
- 8 10/100TX Unmanaged Industrial Switch with M12 connectors and IP41 rated protection
- 4 PoE injectors, comply with IEEE802.3af PoE standard
- Redundant Power Design with DC24~48V input
- Back-plane (Switching Fabric): 1.6 Gbps
- Packet throughput ability: 23.8 Mpps @64bytes
- Packet Buffer: 448Kbits
- 2K MAC address table
- Wide Operating Temperature (-40°C ~75°C)
- Din rail and wall mount design
- EN50155/50121-3-2/50121-4/NEMA TS2 compliant*
- e-Mark compliant*
