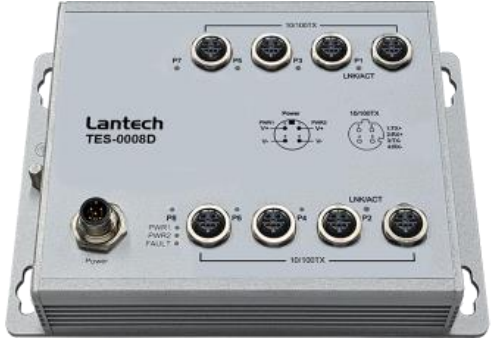

(pressebox) (Klingenberg, 28.11.2024) Lantech TES-0008D is a compact 8 10/100TX unmanaged Ethernet switch with M12 connectors with IP54-rated protection which meets the high-reliability requirements demanded by industrial rolling stock applications. It is designed for Ethernet switch systems in rail, metro, vehicle, or hardened industrial applications with a 24V input.

Galvanic isolation for dual 24VI input

Galvanic isolation protection between power input and Ethernet port to case ground and it accepts dual power input 9~36VDC.

Ignition off mode and sleep mode, optional ITxPT labeled

The IES-0008C Ignition model with a 60-minute countdown of standby mode to continue network operation and then into sleep mode to avoid the switch rebooting when ignition is back. The ignition model is labeled with ITxPT public transport standards.

Features

• 8 10/100TX Unmanaged Ethernet Switch with M12 connectors and IP54 rated protection
• Dual 9V~36VDC power input for 24VI model with ISO7637-2/pulse 5A compliance
• Back-plane (Switching Fabric): 1.6 Gbps
• 2K MAC address table
• Wide Operating Temperature (-40°C ~75°C)
• Wall mount design
• E-marking & optional ITxPT certificate for vehicle application
• Ignition model with 60min count-down to standby mode (24VI-IGN model)

The switch is designed with dual power inputs and is capable of withstanding EMI/RFI interference in the onboard or industrial harden network. The redundant power input design integrates inrush current protection also protects against polarity reversal. Additionally, the galvanic isolation feature shields the system from power transients often present in onboard and outdoor networks. It also meets the requirements of ISO 16750-2 P5A, reducing the impact of high-frequency pulse voltage that could be incurred by motor applications. The switch can be used in extreme environments with an operating temperature range of -40°C to 75°C. The E-marking certificate makes it the most suitable for bus, carriage, and other vehicle applications.
