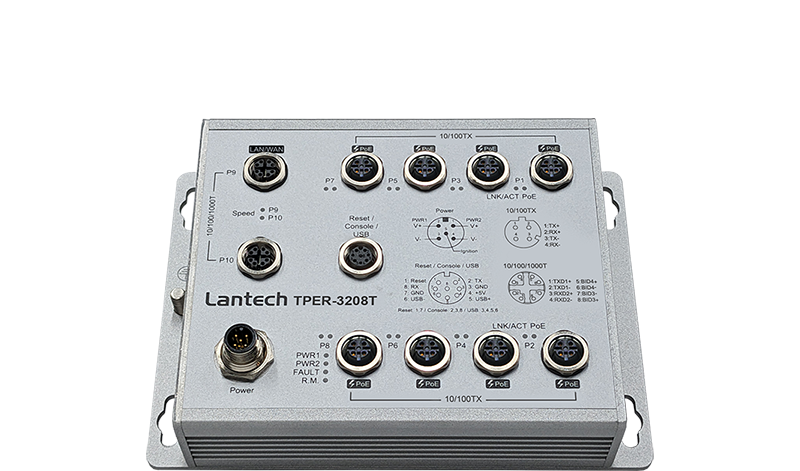

(pressebox) (Klingenberg, 25.04.2024) Lantech T(P)ER-3208T is a high-performance L2+ switch with 8 10/100TX + 2 10/100/1000T (w/8 PoE 802.3af/at) which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms for a single ring, comprehensive QoS, VLAN, GVRP, advanced security SSH v2/SSL, INGRESS ACL L2/L3, IGMPv1/v2/v3/router port, DHCP server/relay, jumbo frame which are important features required in mid and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and to be shown on L2 map topology. The switch supports Open API* that uses JSON format to access and use data for GET, PUT, POST and DELETE types to avoid traditional SNMP management occupying CPU utilization.

• E-mark certificate for vehicle
• EN50155 certificate (TVI model)
• ITxPT* labeled w/ignition function, delay shut down, standby green mode, Inventory service
• ISO16750-2 P5A compliant
• WAN port supports routing firewall, basic network interface
• Galvanic PoE isolation; Support IEEE802.3at/af up to 30W per port; PoE budget 80W
• PoE management incl. Detection and Scheduling
• Efficient POE configuration when ignition off
• EN61373 verification; High ESD protection
• RTC feature powered from golden capacitor; firmware stored in eMMC
• Inrush current prevention; polarity reverse protection
• Enhanced G.8032 ring protection < 20ms for single ring. Supports enhanced mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP
• Miss-wiring avoidance & node failure protection
• User-friendly UI, including auto topology drawing; Complete CLI
• Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82; DHCP Snooping; Port based DHCP distribution, Mac based DHCP server, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3
• 24VI input voltage with galvanic isolation between input power, PoE, and all Ethernet ports
• Optional bypass in case of power failure (-BT model)

Datasheet:  https://lantechcom.eu/cms/index.php/portfolio-item/tper-3208t/
