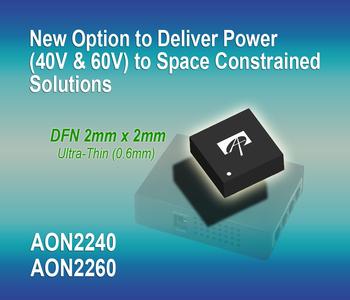

AOS Expands its DFN2x2 Portfolio With New 40V and 60V MOSFETs - DFN2x2 small footprint delivers power density targeting space-constrained DC-DC modules
The 40V AON2240 and 60V AON2260 are based on AOS' proprietary AlphaMOS technology that offers the combination of very low RDS(ON) and fast switching characteristics. With the green DFN2x2 package, circuit designers now have more options in delivering power to space constrained applications. These devices are 100% Rg and UIS tested.
"Circuit designers are constantly optimizing space, performance and cost." said Stephen Chang, Sr. Product Marketing Manager at AOS. "AON2240 and AON2260 provide the flexibility of the small DFN2x2 package. At the same time, these devices also deliver the benefits of low on-resistance and output capacitance to minimize power losses associated with conduction and switching."
AON2240 Technical Highlights
40V N-channel MOSFET in the DFN2x2 package
RDS(ON) < 21 mΩ at VGS = 10 V
RDS(ON) < 29 mΩ at VGS = 4.5 V
COSS = 112 pF (typ)
Qg (4.5 V) = 3 nC (typ)
AON2260 Technical Highlights
60V N-channel MOSFET in the DFN2x2 package
RDS(ON) < 44 mΩ at VGS = 10 V
RDS(ON) < 53 mΩ at VGS = 4.5 V
COSS = 50 pF (typ)
Qg (4.5 V) = 2.6 nC (typ)
Both AON2240 and AON2260 are immediately available in production quantities with a lead-time of 12-14 weeks.
