Cellcheck CIL - the mobile inspection and measuring system
USB camera system for checking and measuring on silicon or glas wafers

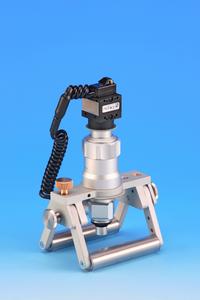

The Cellcheck CIL is always supplied with the stable MST stand. This ensures the stable footing on flat surfaces and on rollers. The width covered by the rollers on the stand ca be adjusted using a knurled bronze screw. This ensures the required distance from the object, particularly with small magnification.
The materials supplied include lenses with 2x, 4x, 6x, 10x, 15x, 20x and 30x optical magnification. The magnification on a 17” PC screen is the result of the product of the magnification of the lens and a factor of 45x – for example a 10x lens shows the measurement point in a magnification of 450 x. The coaxial lighting is providing by powerful white light LED. The power supply is providing by the USB camera. An additional LED ring light is also including in the set. The nine LED’s inclined at an angle of 30° provide perfect illumination for all applications where scattered light is required. Also available is another version with depth measuring to measure the width and height of the finger prints.
