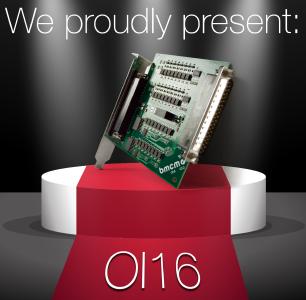

The measurement specialist BMC Messsysteme GmbH (bmcm) recently launched the optocoupler card OI16. It is a board for galvanic isolation of digital signals with 16 optocoupler inputs and 16 semiconductor switches.
The optocoupler card OI16 is ideal for the electrical isolation of digital signals and for optimum protection of the data acquisition and control system.
16 digital states in the 3..32V voltage range can be sampled and recorded. The 16 semiconductor switches of the OI16 are realized with high-side drivers for voltages in the 5..32V range.
The digital inputs and outputs of the application-specific hardware (sensor, machine, etc.) are connected at a 37-pole D-Sub female. A 37-pole D-Sub male serves for the connection to the DAQ and control system.
Particularly simple is the connection to the digital I/O interface PCI-PIO, PCI-Base II, PCIe-Base, LAN-AD16fx as only a 37-pole D-Sub extension cable is needed for connecting.
Additional information is available on the website of BMC Messsysteme GmbH (bmcm) at:
http://www.bmcm.de
